      Separators in the cement industry

      3   Static separators:
      3.1   Introduction:
          - The static separator is like the cyclone a simple mechanical device commonly used in the grinding circuits to remove
            relatively large particles from gas streams.
          - Static separators are relatively inexpensive since they have no moving parts and they are easy to operate.

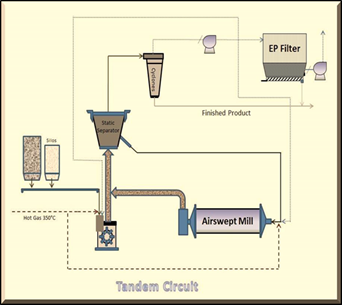

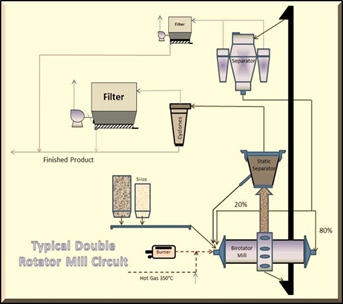

          - Static separators (or grit separators) are used especially in the raw mill circuits:






















































      3.2   Advantages of static separators:
          - Low capital cost
          - Ability to operate at high temperatures and pressures
          - Low maintenance requirements because no moving parts
      3.3   Main disadvantage of static separators:
          - Low efficiency especially for very small particles
      3.4   Principle of operation:
          - The material enters with the air stream at the bottom of the separator.
          - A vortex is created in the upper part of the cone of the separator because of the blades.
          - The coarse material goes towards the walls because of the centrifugal force, slides to the bottom and leaves the separator.
          - The fine material exits through the top of the immersion tube.
          - The fineness of the product is adjusted by changing the position of the blades.
          - When the blades are in radial position (maximum of opening), the product of the static separator will be coarser.
          - When the blades are adjusted in a more tangential position, the product is finer because the tangential velocity of the
             particle increased and the cut size decreased.
          - When the adjustment is higher than 60-70°, the particles tangential velocity decreases due to friction against the blades,
            and the cut size goes up again.

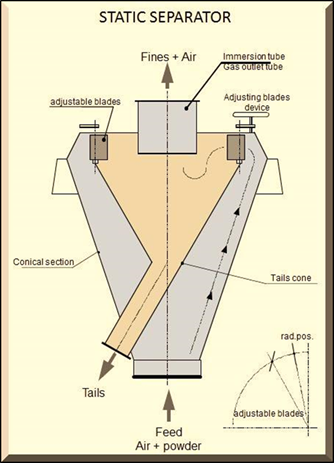

            Click on the picture to enlarge











      3.5   Mechanical parts:
          - Conical section
          - Adjustable blades (with external adjustment)
          - Tails cone
          - Immersion tube (fines outlet)
      3.6   Operating characteristics:
          - Pressure drop usually around 150 mmH2O
          - Shortening the immersion tube will give a coarser product
          - Lengthening the immersion tube will give a finer product
          - Leaving the blades in completely radial position will give a coarse product
          - Adjusting the blades more tangentially will give a finer product and a higher pressure drop
          - If the product is not coarse enough, it is also possible to remove blades (1 of 2 for example)
          - Usual dust concentrations: 500-1000 gr/m3
      3.7   Diameter calculation:
          - The diameter of the separator can be determined with the following formula:







      www.thecementgrindingoffice.com
      4   V-Separators
      4.1   Introduction:
          - This separator is from KHD Humboldt Wedag AG.
          - The V-separator is generally used with a pregrinding system (Roller Press).
          - Applications mainly for raw meals, clinker and slag.
          - The main objective of this separator is to remove a maximum of fines particles from the Roller Press feed in order
            to decrease the problems of vibrations.
          - The V-separator is also combined with the high-efficiency Sepmaster to give the VSK separator. This combination
            can be used (for example) for slag, the Roller Press being a finishing system.
      4.2   Principle of operation:
          - As its name suggests, the V-separator V has a V-shaped.
          - The material enters by the top and falls on a series of inclined plates.
          - The largest particles fall by gravity and leave the separator at the bottom .
          - Intake air feed in the separator on one side and sweep the fine particles from the material cascading.
          - The separation zone is therefore between the inclined plates and a series of deflectors inclined in another direction.

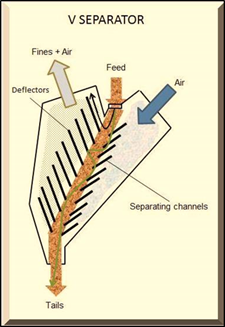

          - The fines go out with the air to the other side. See the design below:










            Click on the picture to enlarge








      4.3   Mechanical parts:
          - Body
          - Inclined plates
          - Inclined deflectors
      4.4   Operating characteristics:
          - In case of hot material (clinker), a significant cooling is possible.
          - At the contrary, in case of humid material (raw meal), a significant drying is possible.
          - The cut size (or fineness of the product) of the V-separator is controlled only by the airflow quantity.
          - Pressure drop usually between 50 and 150 mmH2O
      4.5   Dimensioning parameters:
          - Specific feed loading: 4 kg/m3 (of air flow)
          - Separator air loading by m2 of separating area: 6 m3/sec
