      Separators in the cement industry
      6   Second generation separators:
      6.1   Introduction:
          - Also called: Cyclones separators.
          - As the 1st generation, the material to be classified is dispersed in the area where the separation is created by a
            distribution plate.
          - The air flow required for the separation is produced by an external fan.
          - The separator material feed is carried out mechanically by means of suitable continuous conveyors.
          - Fines are conveyed in external cyclones.
          - Fresh air entry and air exit to filter.
          - The fan that moves the air is a more efficient design and has a considerably reduced dust loading.
          - These separators have a better separation efficiency due to the external fan and the cyclones.
          - Comparison between cyclones and conventional separators:

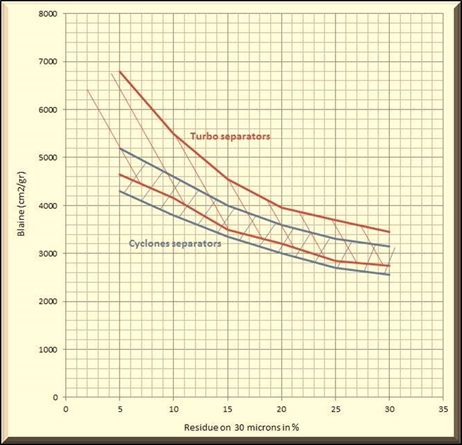

            The diagram here below shows the specific surface (Blaine) produced
            in order to achieve a certain percentage of residue on 30µm (From Duda Cement Data Book).
          - For example, to get 20% residue on 30µm, a turbo separator needs to produce a cement at 3200-3900 Blaine and a
            separator with cyclones 3000-3600 Blaine.
            Click on the picture to enlarge
          - Here a non-exhaustive list of cyclones separators:
            - Wedag ZUB (KHD)
            - Cyclopol (Polysius)
            - SKET (ZAB Co.)
            - FCB cyclones
            - Other copies from former Eastern Europe
      6.2   Advantages of 2nd generation dynamic separators:
          - Possibility of mechanical adjustments
          - Possibility of very large flow rates
          - Flexibility to produce products of different qualities
          - Better efficiency than the conventional separators
          - Less power consumption
          - Reduced wear on the separator internals (especially the fan)
      6.3   Disadvantages of 2nd generation dynamic separators:
          - More space needed
          - Less efficient than cage separators
      6.4   Principle of operation:
          - The material is fed at the top of the separator.
          - Material falls and is dispersed in the circulating air by the distribution plate.
          - The air stream is generated by an external fan and recirculated. Possibly, there is a regulated fresh air inlet
            in the part of the duct going to the separator.
          - There is an exit where air is removed to a dedusting filter in order to maintain a constant underpressure
            inside the system.
          - The coarse material is separated by aspiration inside the main casing and goes out via the bottom conical device.
          - As a certain number of fines particles are entrained downwards with coarse particles, the air flow returning to the
            separating area has a second chance to pick up any fines in the rejects.
          - The air  with some amount of fine material is going back to the separating zone through the air vanes.
          - The fine material exits by the top of the separator and the air flow enters into the cyclones through the gas pipe.
          - The material is separated in the cyclones and exits through the bottom of these.
          - The cleaned air (the dust content is generally less than 15 g/m³) is recirculated via the fan.
          - It has been observed that the air flow speed in 2nd generation separators is in the order of 30% of the
            air speed for conventional separators.

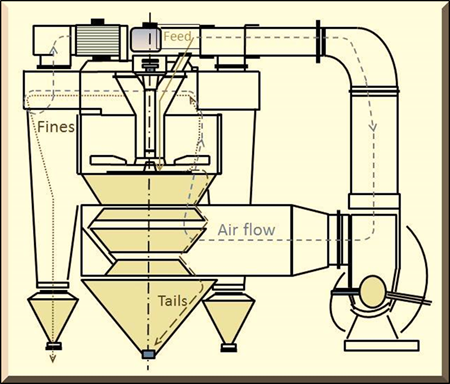

          - See the figure below:
            Click on the picture to enlarge
      6.5   Possibilities of adjustments:
          Main adjustments:
          - Speed of counterblades
          - Fan speed
          - Fan damper
          Other possible adjustments:
          - To remove or increase the counterblades number
          - To increase the distribution plate diameter
          - To decrease the distance between the distribution plate and the counterblades

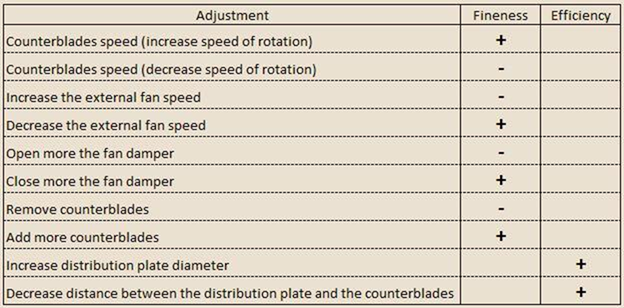

          Summary of the adjustments and consequences:
      6.6   Parameter of dimensioning:

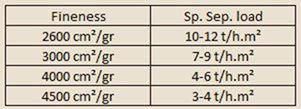

          - The Specific Separator load
            The values depend from a supplier to an other one:
      6.7   Different designs:

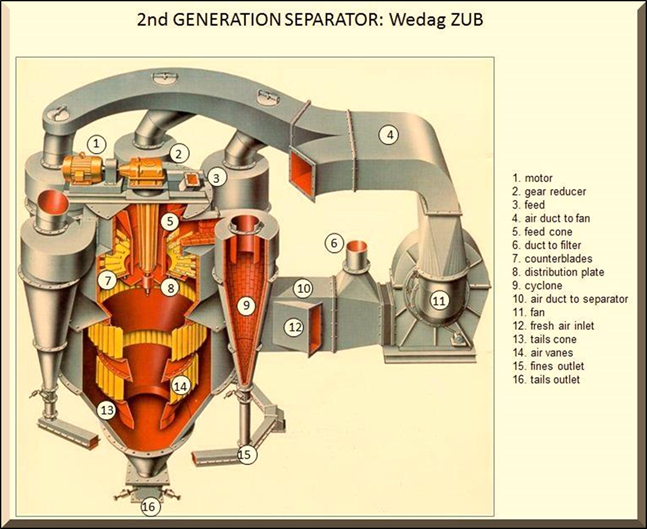

          - Wedag ZUB (KHD):

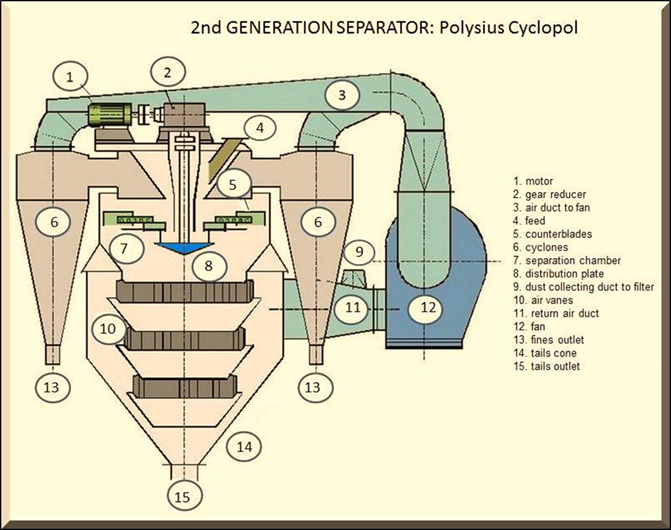

          - Cyclopol (Polysius):

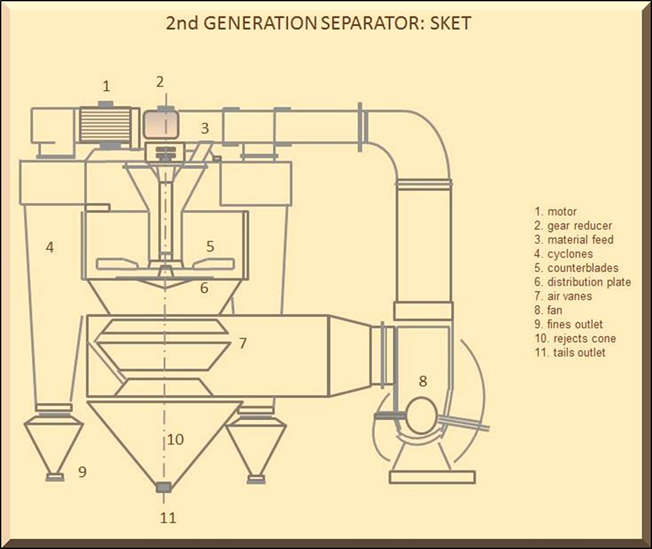

          - SKET (ZAB):

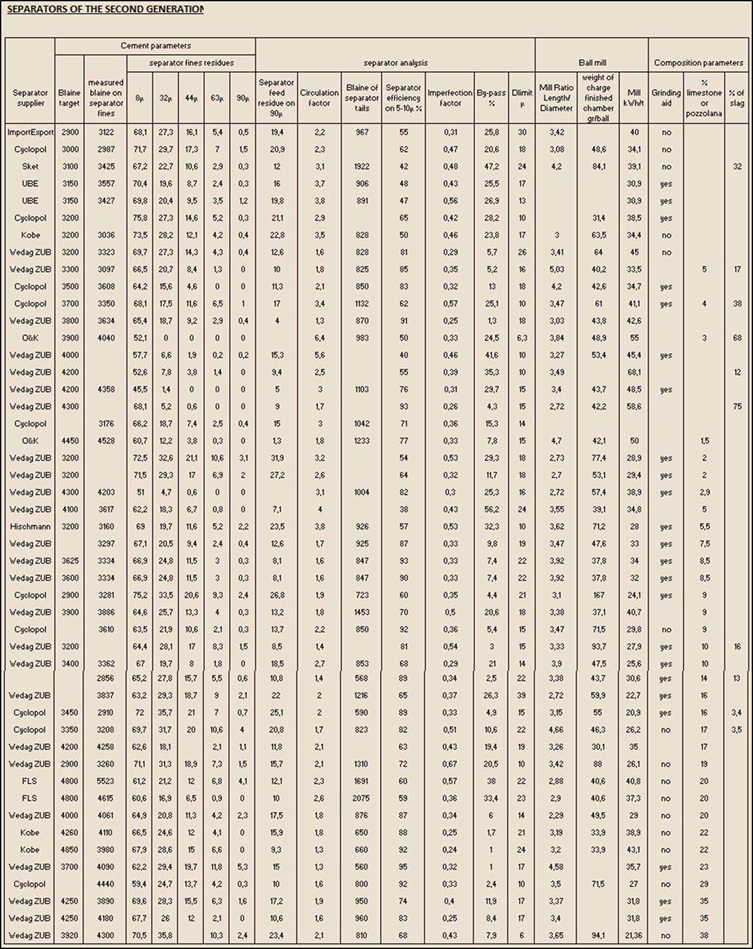

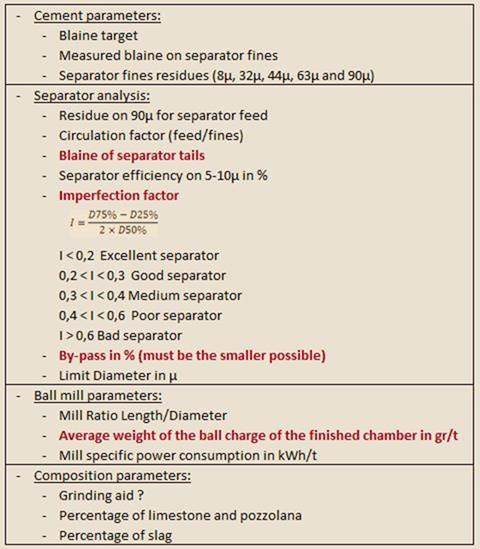

      6.8   Second generation separators data sheet:
          - The data sheet allows to have a good idea of the second generation separators efficiency.
          - The different data are explained herebelow:
                    Click on the picture to enlarge
